Specs at a glance
Process temperature
-200 °C ... 250 °C
Process pressure / max. overpressure limit
Vacuum ... 160 bar
Min. conductivity of medium
Field of application

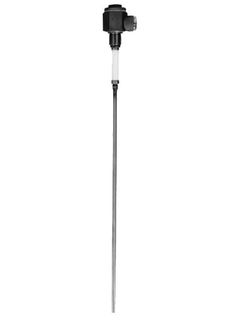

The 11961Z is a highly resistant probe for applications with aggressive medium thanks to corrosion-resistant materials for rod and insulation. It can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water.
For conductive point level detection in process or storage tanks, for conductivity as of 0.02mS/cm. As overfill prevention with line monitoring even in Ex-area Zone 0, or pump protection in pipes and two-point control.
Process connection: Thread
Measuring range: 100 to 2,000mm (5.9 to 78.7")
Temperature: -200 to +250°C (-328 to 482°F)
Pressure: -1 to +160bar (-15 to +2,320psi)
Components: Transmitter FTW325
International explosion protection certificates, overfill prevention WHG
Benefits
Safe and reliable measurement even in aggressive medium thanks to corrosion-resistant materials for rod and insulation
Can be used in steam boilers thanks to ceramic insulation resistant to steam and hot water
Can be deployed particularly with high pressure or vacuum
Probe can be shortened as required
Lean selection
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
©Endress+Hauser
Simple products
Easy to select, install and operate
Technical excellence
Simplicity
Standard products
Reliable, robust and low-maintenance
Technical excellence
Simplicity
High-end products
Highly functional and convenient
Technical excellence
Simplicity
Specialized products
Designed for demanding applications
Technical excellence
Simplicity
FLEX selections
Technical excellence
Simplicity
Fundamental selection
Meet your basic measurement needs
Technical excellence
Simplicity
Lean selection
Handle your core processes easily
Technical excellence
Simplicity
Extended selection
Optimize your processes with innovative technologies
Technical excellence
Simplicity
Xpert selection
Master your most challenging applications
Technical excellence
Simplicity
Loading alternative products
Success stories
Time saved, safety increased
Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.
Read the full story
Characteristic / Application
One rod probe for high and extremely low temperature and high pressure. Corrosion resistant
Ambient temperature
-200 °C ... 250 °C
Process temperature
-200 °C ... 250 °C
Process pressure / max. overpressure limit
Vacuum ... 160 bar
Min. conductivity of medium
Sensor length
0.1m ... 2m
Application limits
Observe min. medium conductivity
