Liquiphant FTL63 – product picture

Liquiphant FTL63 – hygienic point level switch for liquids

Proven in the field, easy to use and perfectly suitable for hygienic applications.

FTL63
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

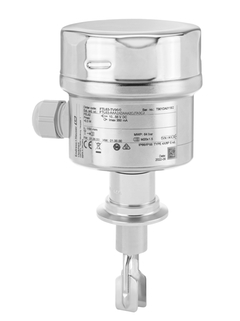

Liquiphant FTL63, 316L housing, switch electronic, clamp for NA-Connect, compact sensor version
  • F
  • L
  • E
  • X
©Endress+Hauser
Liquiphant FTL63, 316L housing, switch electronic+LED, clamp for NA-Connect, compact sensor version
  • F
  • L
  • E
  • X
©Endress+Hauser

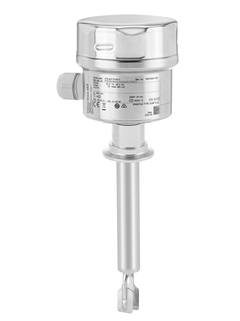

Liquiphant FTL63, 316L housing, switch electronic, clamp for NA connect, sensor with extension tube
  • F
  • L
  • E
  • X
©Endress+Hauser

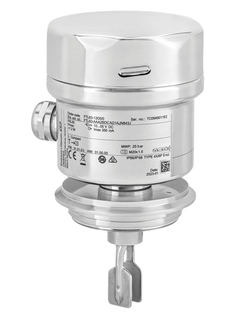

Liquiphant FTL63, 316L housing, switch electronic, Varivent N, compact sensor version
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Process temperature

    -50 °C...+150 °C
    (-58 °F...+302 °F)

  • Process pressure / max. overpressure limit

    Vacuum...64 bar
    (Vacuum...928 psi)

  • Min. density of medium

    0.5 g/cm³
    (0.4 g/cm³ optional)

Field of application

Specifically developed for the food and beverage and life sciences industries, the Liquiphant FTL63 is compliant to all their hygienic requirements. The proven vibronic technology works reliably in all pumpable liquids, even where other measuring principles reach their limits due to changes in conductivity or dielectric constant (DC value), deposits, foam, turbulences or air bubbles. Therefore, the technology is the perfect substitute for float switches, capacitive or optical sensors.

Liquiphant FTL63 is used for point level detection in process and storage tanks as well as in pipelines.

  • Process temperature from -50 to +150 °C (-58 to +302 °F)

  • Viscosities up to 10,000 mm2/s (cSt)

  • Sensor length up to 3 m (10 ft)

  • Surface finish: mechanical or electropolished

  • International hygienic certificates (3-A, EHEDG, ASME BPE), contact material conformity with EC1935/2004, FDA, GB4806

  • International explosion protection certificates, overfill protection WHG, SIL

  • CIP/SIP

Benefits

  • Universal use in all pumpable liquids without media adjustment - proven vibronic measurement technology

  • High process and product safety through certified hygienic design (3-A, EHEDG, ASME BPE) as well as proven material conformity and traceability through declarations and certificates (e.g. EC1935/2004, FDA and cGMP)

  • Easy commissioning with plug & play functionality and minimized maintenance effort thanks to function test via test button or magnetic pin

  • Continuous diagnostics as well as traceable and documented on-demand verification without process interruption thanks to Heartbeat Technology

  • Intuitive operation via Bluetooth® Technology as well as optical process status indication via colored and bright LED
