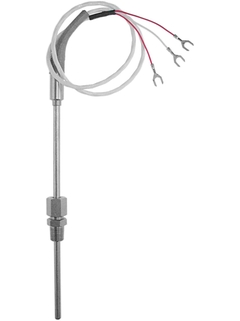

Product picture RTD thermometer cable probe TH12, US style

iTHERM CableLine TH12
Cable probe

Imperial RTD thermometer with connecting cable for use in many process and laboratory applications

TH12
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

This product is not available in this market.

*Please contact your Endress+Hauser sales partner for any further questions.

TH12 US style RTD sensor, cable probe
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751

  • Response time

    63% rt = 2,0 s

  • Max. process pressure (static)

    at 20 °C: 40 bar (580 psi)
    depends on configuration

  • Operating temperature range

    PT100 WW:
    -200 °C … 600 °C
    (-328 °F … 1.112 °F)
    PT100 TF:
    -50 °C … 200 °C
    (-58 °F … 392 °F)

  • Max. immersion length on request

    up to 96" (2439 mm)
    others on request

Field of application

The Pt100 cable probe is easy to install and provide a high operational safety due to reliable and accurate temperature measurement in common processes. Without additional thermowell the probe sheath is directly in contact with the process medium. This enables the cable probe to detect rapid temperature changes fast and accurate.

The TH12 temperature sensors are RTD's designed for use in the process industry or factory automation type of environment. They are made up of a measurement probe with a RTD, insulation and sheath.

Among other applications the sensors can be used on:

  • Heat exchangers

  • Power & recovery areas

  • Carbon regeneration furnaces

  • Dryers

  • Flue gas

  • Compressor stations

  • Process reactors

Benefits

  • High flexibility due to customized immersion length

  • Fast response time with reduced/tapered tip form

  • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder

  • Improved galvanic isolation on most devices (2 kV)

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance
