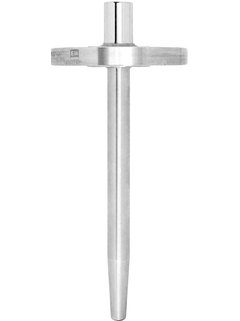

Product picture barstock thermowell TA575

TA575
Barstock thermowell

Made of drilled barstock material. Mainly used in heavy duty or general purpose applications.

TA575
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
TA575 Barstock thermowell
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Max. process pressure (static)

    500 bar (7252 psi)

  • Maximum standard immersion length

    1000 mm (39,37")

  • Max. immersion length on request

    5.000 mm (196,85")

Field of application

Due to the challenging process conditions by heavy duty applications the load capacity of a thermowell must be calculated exactly. Dye penetration tests, ultrasound test, helium leakage test, pressure endurance test as well as various, non-destructive material tests prove the quality of materials and processing.

TA575 is designed for use with resistance and thermocouple thermometers mainly in heavy duty applications.

Benefits

  • The extension, the immersion and the tapering lengths as well as the bar dimensions can be chosen according to process requirements

  • A wide choice of standard materials and flanged connections is available; special versions can be ordered according to specification

  • Different grades of surface finishing are also available

  • The thermowell stem shape is conical

  • The process connection is flanged with double sided standard or full penetration weld

Lean selection

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

FLEX: Lean ©Endress+Hauser

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity
