Données clés
-
Measured variables
Volume a. c., volumetric flow a. c., Fluid velocity, Speed of sound
-
Measuring Medium
LNG (Liquefied Natural Gas)
-
Nominal pipe size
8 ″ ... 36 ″
DN200 ... DN900, Schedule 40S/STD acc. ASME B36.19 / B36.10, others on request
Domaine d'application

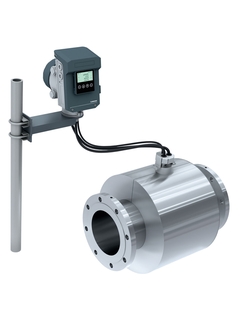

FLOWSIC900 is the result of our many years of experience in natural gas measurement: a flowmeter specially tailored to the requirements of the LNG industry. It offers the required custody transfer accuracy for volume flow measurement and meets highest metrological standards. With FLOWSIC900 and the proven products FLOWSIC600-XT and FLOWSIC100 Flare-XT, we offer high-end measurement solutions from a single source to bring measurement performance and reliability in LNG plants to a new level.
Custody transfer measurement of LNG
On- and offshore applications
Liquefaction, transport and storage of LNG
Device properties:
Intrinsically safe and reliable ultrasonic transducers
Conform to OIML R117 Cl. 0.3 and API MPMS Ch. 5.8
Real time measurement and diagnostics
Full bore design without pressure drop or need for flow conditioner
Factory thermal pre-insulation
Remote Signal Processing Unit
Avantages
Low measurement uncertainty directly at custody transfer point reducing financial risks during LNG-transaction
Increased transparency during LNG transaction by dynamic & real-time measurement &
diagnosticsOperational expenditure savings by reduced boil-off gas losses and efficient LNG transfer due to minimized pressure drop
Capital expenditure savings by simpliefied meter integration and installation due to compact design and factory pre-insulation
Easy and fast access during commissioning and regular checks with remote SPU
